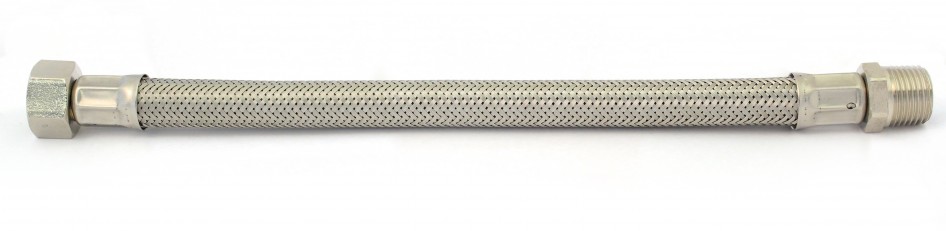

Bore Fitting Size Length Minimum Length Working Pressure (BAR) Safety Factor (MIN) Bend Radius (MM)
DN10 (3/8") 3/8” – ½” - 150mm 20 4:1 40
DN12 (1/12") ½” – ¾” - 150mm 20 4:1 60
DN16 (5/8”) ½” – ¾” - 150mm 16 4:1 70
DN20 (3/4”) ½” – ¾” - 180mm 16 4:1 80
DN25 (1”) 1” - 180mm 10 4:1 100
DN32 (1 ¼”) 1 ¼” - 230mm 10 4:1 160
DN40 (1 ½”) 1 ½” - 250mm 6 4:1 180
DN50 (2”) 2” - 250mm 6 4:1 130
Temperature Range
-20C to +110°C
Standards

ISO9001-2008

BSRIA BG4/2004 (up to 1”)

WRAS Approved Version Available (up to 1”)
