1/4″ BSPP Compact Cylinder
From: £1,420.91

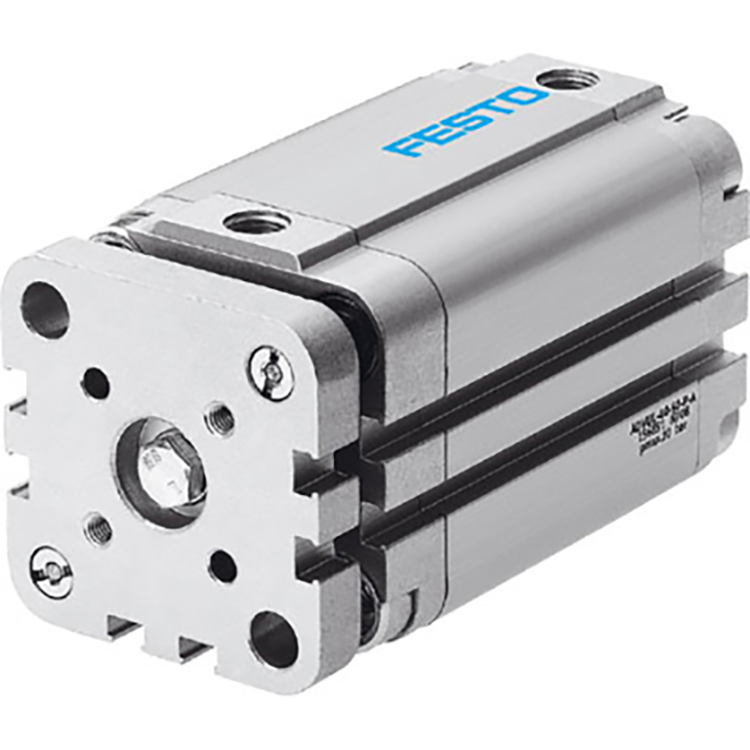

Compact Cylinder Advul-100-80-P-A For Proximity Sensing. Piston Rod Secured Against Rotation By Means Of Guide Rod And Yoke Plate. Stroke=80 Mm, Piston Diameter=100 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both E...Read more
Click and collect from one of our 28 branches
Compare
Total : £0.00
| Part Number | Barrel Material | Bore Size mm | Piston Rod Material | Stroke Length mm | Working Pressure bar | Working Temperature | List Price | 1-9 Price | 10+ Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 156929 | Wrought Aluminium Alloy | 100 | Stainless Steel | 80 | 1 to 10 | -20°C to +80°C | £1,740.06 | £1,591.97 | ||
| 156928 | Wrought Aluminium Alloy | 100 | Stainless Steel | 60 | 1 to 10 | -20°C to +80°C | £1,648.90 | £1,508.57 | ||
| 156927 | Wrought Aluminium Alloy | 100 | Stainless Steel | 50 | 1 to 10 | -20°C to +80°C | £1,603.28 | £1,466.83 | ||
| 156926 | Wrought Aluminium Alloy | 100 | Stainless Steel | 40 | 1 to 10 | -20°C to +80°C | £1,557.69 | £1,425.12 | ||
| 156924 | Wrought Aluminium Alloy | 100 | Stainless Steel | 25 | 1 to 10 | -20°C to +80°C | £1,489.29 | £1,362.54 | ||
| 156922 | Wrought Aluminium Alloy | 100 | Stainless Steel | 15 | 1 to 10 | -20°C to +80°C | £1,443.70 | £1,320.84 | ||
| 156921 | Wrought Aluminium Alloy | 100 | Stainless Steel | 10 | 1 to 10 | -20°C to +80°C | £1,420.91 | £1,299.98 |
Total : £0.00
Compact Cylinder Advul-100-80-P-A For Proximity Sensing. Piston Rod Secured Against Rotation By Means Of Guide Rod And Yoke Plate. Stroke=80 Mm, Piston Diameter=100 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Position=Any, Design Structure=(* Piston, * Piston Rod), Festo
