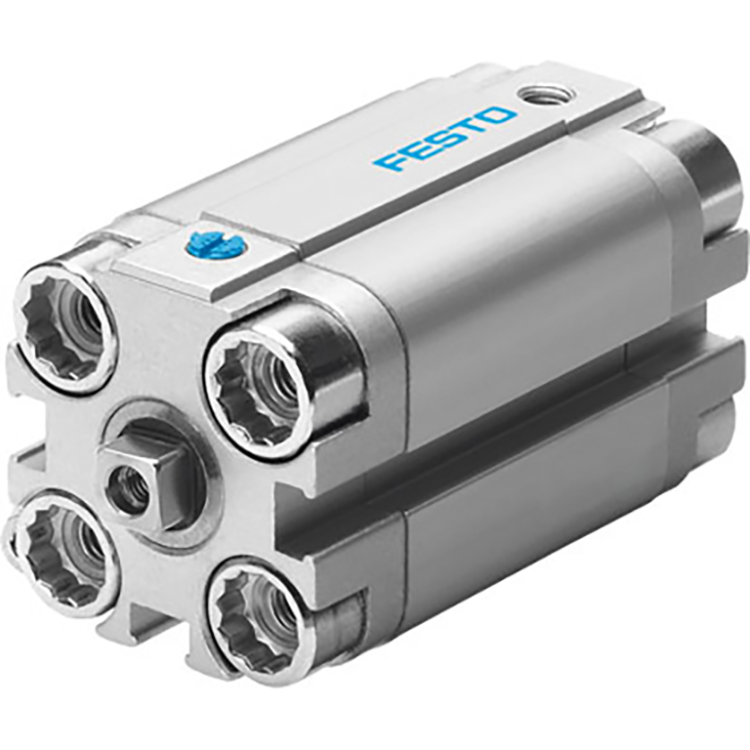

1/4″ BSPP Compact Cylinder
From: £1,104.89
Compact Cylinder Aevulq-100-25-P-A For Proximity Sensing. Secured Against Rotation By Means Of Square Piston Rod. Stroke=25 Mm, Piston Diameter=100 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Pos...Read more
Click and collect from one of our 28 branches
Compare
Total : £0.00
| Part Number | Barrel Material | Bore Size mm | Piston Rod Material | Piston Rod Thread Gender | Stroke Length mm | Working Pressure bar | Working Temperature | List Price | 1-9 Price | 10+ Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 157067 | Wrought Aluminium Alloy | 100 | Stainless Steel | Female | 25 | 0.6 to 10 | -20°C to +80°C | £1,159.22 | £1,060.56 | ||
| 157066 | Wrought Aluminium Alloy | 100 | Stainless Steel | Female | 20 | 0.6 to 10 | -20°C to +80°C | £1,141.07 | £1,043.96 | ||
| 157065 | Wrought Aluminium Alloy | 100 | Stainless Steel | Female | 15 | 0.6 to 10 | -20°C to +80°C | £1,122.99 | £1,027.42 | ||
| 157064 | Wrought Aluminium Alloy | 100 | Stainless Steel | Female | 10 | 0.6 to 10 | -20°C to +80°C | £1,104.89 | £1,010.85 |
Total : £0.00
Compact Cylinder Aevulq-100-25-P-A For Proximity Sensing. Secured Against Rotation By Means Of Square Piston Rod. Stroke=25 Mm, Piston Diameter=100 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Position=Any, Mode Of Operation=(* Single-Acting, * Pushing Action), Festo
