Cylinders, Pneumatic Cylinder & Mountings, Pneumatics
Compare

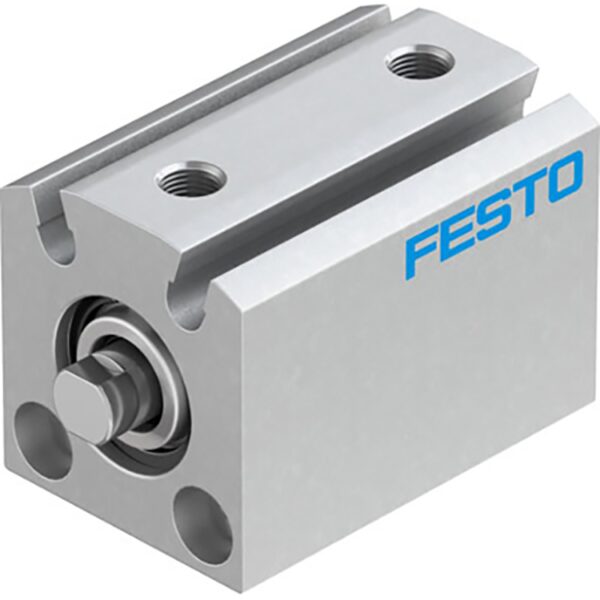

M5 Metric Short-Stroke Cylinder
From: £76.97
Short-Stroke Cylinder Advc-12-10-P-A Without Thread On Piston Rod Stroke=10 Mm, Piston Diameter=12 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Position=Any, Mode Of Operation=Double-Acting, Festo
Click and collect from one of our 28 branches
Compare
Total : £0.00
| Part Number | Barrel Material | Bore Size mm | Piston Rod Material | Stroke Length mm | Working Pressure bar | Working Temperature | List Price | 1-9 Price | 10+ Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 530573 | Wrought Aluminium Alloy | 12 | High Alloy Steel | 10 | 1 to 10 | -20°C to +80°C | £81.54 | £74.60 | ||
| 530572 | Wrought Aluminium Alloy | 12 | High Alloy Steel | 5 | 1 to 10 | -20°C to +80°C | £80.77 | £73.90 | ||
| 526906 | Wrought Aluminium Alloy | 10 | High Alloy Steel | 10 | 1 to 8 | -20°C to +80°C | £77.74 | £71.12 | ||
| 526905 | Wrought Aluminium Alloy | 10 | High Alloy Steel | 5 | 1 to 8 | -20°C to +80°C | £76.97 | £70.42 |
Total : £0.00
Short-Stroke Cylinder Advc-12-10-P-A Without Thread On Piston Rod Stroke=10 Mm, Piston Diameter=12 Mm, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Position=Any, Mode Of Operation=Double-Acting, Festo
