1/4″ Female BSPT Hinge Cylinder
From: £252.36

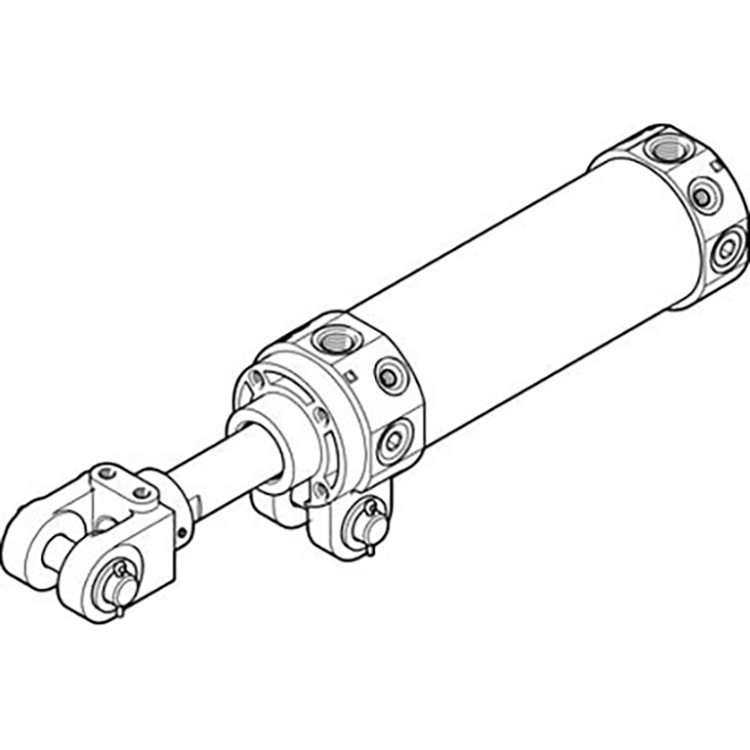

Hinge Cylinder Dwc-63-150-Y Stroke=150 Mm, Piston Diameter=63 Mm, Piston Rod Thread=M16X1,5, Distance of Rod Clevis to Swivel Mounting=16,5 Mm, Cushioning=Ppv: Pneumatic Cushioning Adjustable at Both Ends, Festo
Click and collect from one of our 28 branches
Compare
Total : £0.00
| Part Number | Barrel Material | Bore Size mm | Piston Rod Material | Piston Rod Thread | Piston Rod Thread Gender | Stroke Length mm | Working Pressure bar | Working Temperature | List Price | 1-9 Price | 10+ Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 558106 | Wrought Aluminium Alloy | 63 | Tempered Steel | M16 x 1.5 | Male | 150 | 1 to 10 | -10°C to +60°C | £295.22 | £270.10 | ||
| 558105 | Wrought Aluminium Alloy | 63 | Tempered Steel | M16 x 1.5 | Male | 125 | 1 to 10 | -10°C to +60°C | £290.99 | £266.23 | ||
| 558104 | Wrought Aluminium Alloy | 63 | Tempered Steel | M16 x 1.5 | Male | 100 | 1 to 10 | -10°C to +60°C | £286.47 | £262.09 | ||
| 558103 | Wrought Aluminium Alloy | 63 | Tempered Steel | M16 x 1.5 | Male | 75 | 1 to 10 | -10°C to +60°C | £282.27 | £258.24 | ||
| 558102 | Wrought Aluminium Alloy | 63 | Tempered Steel | M16 x 1.5 | Male | 50 | 1 to 10 | -10°C to +60°C | £277.77 | £254.13 | ||
| 558091 | Wrought Aluminium Alloy | 50 | Tempered Steel | M16 x 1.5 | Male | 150 | 1 to 10 | -10°C to +60°C | £266.27 | £243.61 | ||
| 558090 | Wrought Aluminium Alloy | 50 | Tempered Steel | M16 x 1.5 | Male | 125 | 1 to 10 | -10°C to +60°C | £262.82 | £240.45 | ||
| 558089 | Wrought Aluminium Alloy | 50 | Tempered Steel | M16 x 1.5 | Male | 100 | 1 to 10 | -10°C to +60°C | £259.28 | £237.22 | ||
| 558088 | Wrought Aluminium Alloy | 50 | Tempered Steel | M16 x 1.5 | Male | 75 | 1 to 10 | -10°C to +60°C | £255.83 | £234.06 | ||
| 558087 | Wrought Aluminium Alloy | 50 | Tempered Steel | M16 x 1.5 | Male | 50 | 1 to 10 | -10°C to +60°C | £252.36 | £230.88 |
Total : £0.00
Hinge Cylinder Dwc-63-150-Y Stroke=150 Mm, Piston Diameter=63 Mm, Piston Rod Thread=M16X1,5, Distance of Rod Clevis to Swivel Mounting=16,5 Mm, Cushioning=Ppv: Pneumatic Cushioning Adjustable at Both Ends, Festo
